AJAX Geared Head Pedestal Drilling Machines.

Ajax AJ35 Pedestal Drill

The Ajax range of pedestal drilling machines has been around for a long time. They are designed and built to work hard all day, every day, for the next 25 years without requiring any repairs. Give us a call to choose your next reliable drilling machine or email us at sales@ajax-mach.co.uk.

Manufactured in a semi-automated factory using a multi-pallet Fastems pallet system, these machines produce parts 24/7.

In the truest sense of the word, these machines are heavy-duty.

Specification

Main features include

  • Automatic drill ejector.
  • Adjustable depth gauge an automatic mechanical trip on feed.
  • Push button control for starting and reversing.
  • Built in LED lighting.
  • Graduated tilting table through 180 degrees.
  • Hand-wheel for fine feed adjustment.
  • Manufactured in Europe with a CE & CA mark as standard.

Pedestal Drilling Machine Gallery

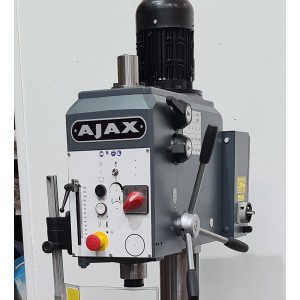

Ajax Drill fitted with the new type emergency brake.

Design and Build

These machines are built in a time honoured tradition with manual assembly buy highly trained engineers. The distance from the spindle to the table and base allows large components to be drilled easily.

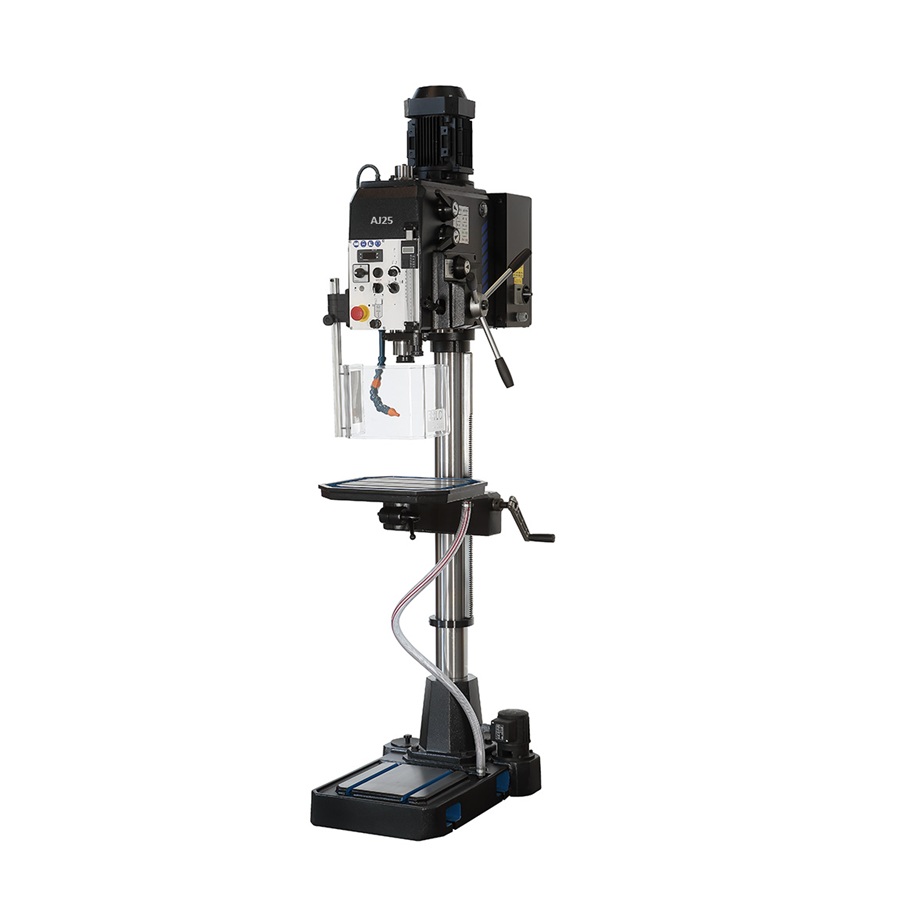

The machines, with the exception of the AJ25 and AJ30, are fitted as standard with an automatic feed mechanism which is graduated and can be set to the best feed rate. (Feed optional of AJ25 & AJ30).

Gear Box

The drive systems in our machines consist of hardened, ground, and shaved gears, manufactured from the highest quality nickel chrome steel. The shafts are splined, ground, and made to tight tolerances to ensure a perfect fit, providing smooth operation. All machines are equipped with an inbuilt oil pump that lubricates the gearbox.

As standard, our machines feature automatic drill ejectors and coolant equipment (coolant is optional on the AJ25 and AJ30 models).

To facilitate operation, all machines incorporate a rack and pinion drive for the column, assisting with the vertical positioning of the table.

This is only part of our range, which includes bench and pedestal drills, pillar drills, multi-heads, multi-spindle machines, and auto-cycle tapping machines.

Ajax makes machines that make round holes.
